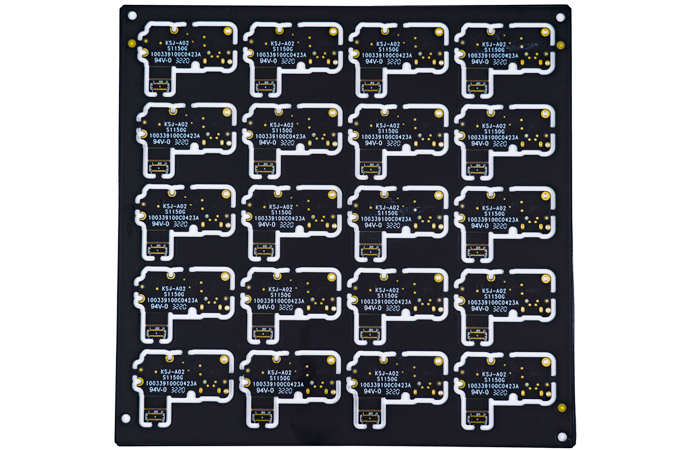

Rigid-Flex PCB

Rigid-Flex printed circuit boards are using a combination of flexible and rigid board that are permanently connected to one another. And they are designed in a 3D space, which also offers greater spatial efficiency.


Most rigid flex boards are composed of of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are with a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

product structure

1.With an reliable interconnection and reduce the costs of logistical and assembly; 2.A rigid part for mounting the components, a flexible part for the movement,reliable and space-saving 3. Easy assembly because of flexibility and lack of connectors connections; 4. Not any incorrect assembly owing to the integrated interconnection, which can prevent incorrect assembly during maintenance work; 5. Many options for impedance controlled tracks; it can realize impedance control in both the rigid and the flex parts.

KSJ Circuits PCB Certifications & Registrations

While your repeat business best illustrates our commitment to excellence, we also hold advanced PCB certifications to verify our extremely rigorous standards.

MANUFACTURING EQUIPMENTS AT KESHIJIA

For more than 14 years, we have been produced printed circuit boards for over 2500 companies throughout Europe, North America and Asia, including factories and distributors.Our manufacturing facilities dose inspect the whole materials and manage the whole production process carefully to ensure quality control.
